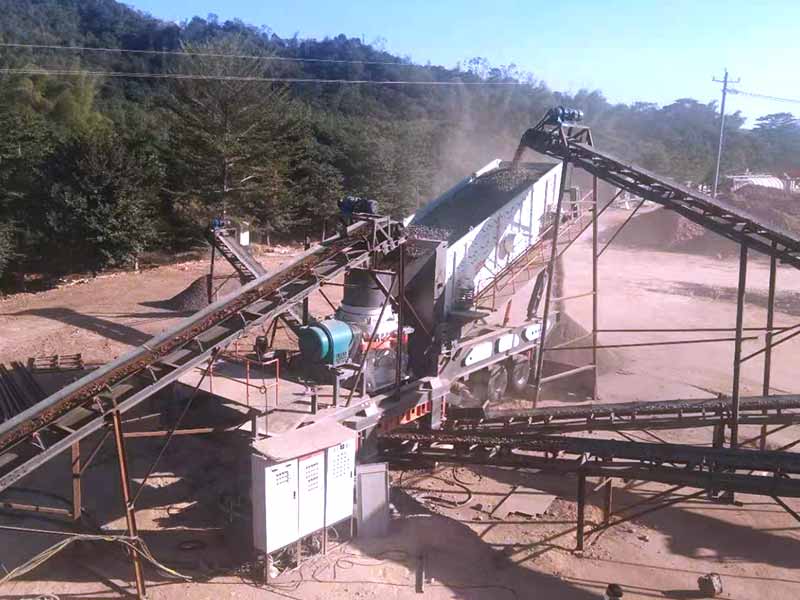

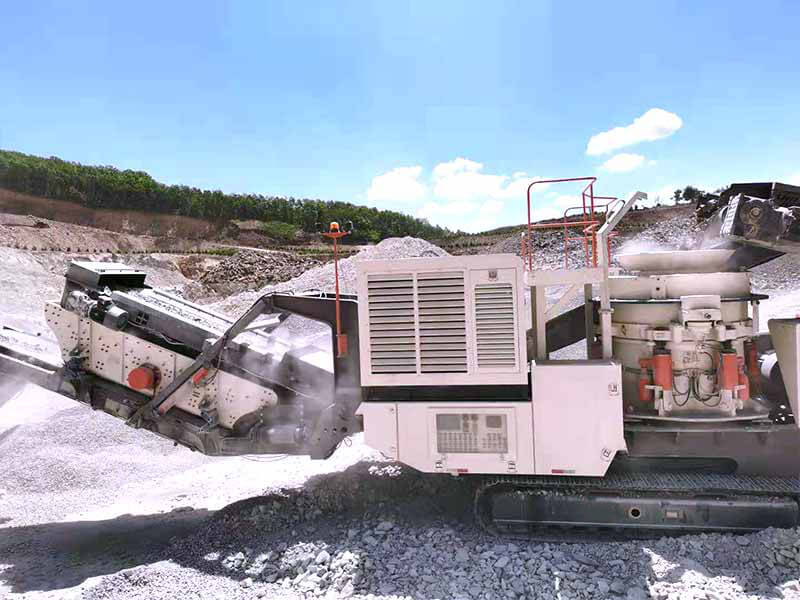

Mobile Cone Crushing Plant

【Feeding Size:】 50-200mm
【Processing Capacity:】 20-180t/h
【Range of application:】 mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.
【Applied Material:】 Iron ore, Construction waste,Granite, Limestone, Pebbles, Quartzite, Sandstone, Non-ferrous Metal ores, etc

Product information

Some Basic Information of Mobile Cone Crusher

Mobile cone crusher with a cone crusher as the main rock crusher equipment.In the application of mobile crushing station, it is equipped with high performance and high-capacity CS cone crusher and HP Serious Hydraulic Cone Crusher in two-stage and three-stage fine crushing.Mobile cone crusher can achieve high productivity,large crushing ratio and excellent grain shape.

The Main Features of Mobile Cone Crusher

1.High crushing efficiency

2.Convenient for road transportation

3.Compact structure,occupy less space

4.Reliable and stable quality assurance

5.Light and reasonable structural design

The Working Principle of Mobile Cone Crusher

Materials are evenly transported to cone crusher by vibrating feeder, after cone crusher makes primary crushing, a cycle system forms by circular vibrating screen, materials get cycle crushing, finished products are output by belt conveyor and continuous crushing operations go. Mobile cone crusher plant can remove circular vibrating screen based on the actual production, materials are directly made primary crushing, equipped with another crushers, it is convenient and flexible to operate.

Technical specifications

Model	THP300L	THP400L	TCH430
Feeding Machine
Specification	B1000*4.6m	B1200*4.6m	B1000*6.5m
Drive Mode	Inverter motor	Inverter motor	Inverter motor
Drive Mode	Reducer drive	Reducer drive	Reducer drive
Cone Crusher
Equipment	HP300	HP400	CH430
Max Feeding Size	200mm	260mm	185mm
Minimum Outlet	10mm	20mm	20mm
Motor Power	220KW	280KW	160KW
Frame
Hydraulic Tracked Chassis	60T	60T	60T
Boat Frame	Q345B Welding	Q345B Welding	Q345B Welding
Return screen
Specification	2YZK1500*3500	YK1500*3800	YK1530
Drive Mode	Vibration Motor 3.7KW	Vibration Motor 3.7KW	Vibration Motor 3.7KW*2
Main Belt Conveyor
Specification	B1200*12.5m	B1200*10.6m	B1200*10.6m
Drive Mode	Motor reducer drive 15KW	Motor reducer drive 15KW	Motor reducer drive 15KW
Looped polyester canvas strap	EP300-B1200x5(6.5+1.5)	EP300-B1200x5(6.5+1.5)
Under the screen belt conveyor
Specification	B1200*5.6m	B1200*6.2m	B1200*5.4m
Drive Mode	Motor reducer drive 7.5KW	Motor reducer drive 7.5KW	Motor reducer drive 7.5KW
Looped polyester canvas strap	EP300-B1200x3(4.5+1.5)	EP300-B1200x5(6.5+1.5)
Return belt conveyor
Specification	B500*12.5m	B650*12.5m	B500*12.5m
Drive Mode	Motor reducer drive 7.5KW	Motor reducer drive 7.5KW	Motor reducer drive 7.5KW
Looped polyester canvas strap	EP300-B500x3(4.5+1.5)	EP300-B500x3(4.5+1.5)
Transfer Belt Conveyor
Specification	B500*2.4m	B650*2.4m	B500*2.4m
Drive Mode	Motor reducer drive 4KW	Motor reducer drive 4KW	Motor reducer drive 4KW
Looped polyester canvas strap	EP200-B500x3(4.5+1.5)	EP200-B650x3(4.5+1.5)
Power System
Generator Set	400KW Generator Set	500KW Generator Set	305KW Generator Set
Electrical System
Electric control cabinet	The cone crusher motor starts with variable frequency, the feeder starts with variable frequency, and other motors start directly.	The cone crusher motor starts with variable frequency, the feeder starts with variable frequency, and other motors start directly.	The cone crusher motor starts with variable frequency, the feeder starts with variable frequency, and other motors start directly.
Hydraulic system
Belt conveyor folding cylinder	Hydraulic automatic lift	Hydraulic automatic lift	Hydraulic automatic lift
Hydraulic Pumps, Valves, Accessories	Load Sensitive, Electro-hydraulic Proportional Manifold	Load Sensitive, Electro-hydraulic Proportional Manifold	Load Sensitive, Electro-hydraulic Proportional Manifold
