Sand Making Machine

【Feeding Size:】 ≤50mm
【Processing Capacity:】 60-600t/h
【Range of application:】 Building aggregate, road fabric, cushion material, asphalt concrete and cement
【Applied Material:】 Pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone.

Product information

The Hot-sale Types of Sand Making Machine

It is the key equipment for artificial sand making to provide high quality sand aggregate for building, highway, construction, concrete batching plant, etc.

The hot sale sand making machine includes artificial sand making machine, silica sand making machine, plaster sand making machine.

We also provide complete sand making production line, which includes sand making machine, sand washing machine, sand screen machine, vibrating feeder, belt conveyor,etc.

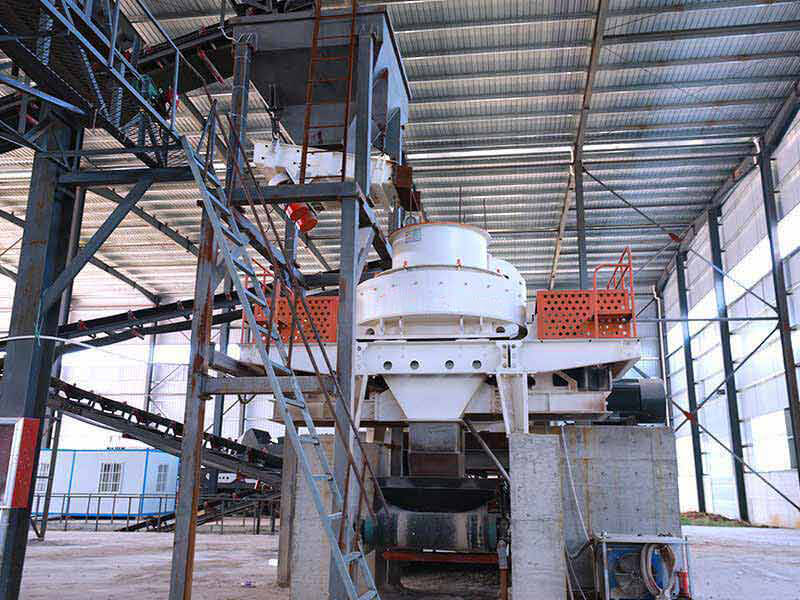

sand_making_machine

The Prce List of Sand Making Machine

We can promise 100% factory price and discount for our customers. Welcome to visit our company and factory.

If you are new in this industry, we will provide suggestions and solutions according to your needs and material features.

Technical specifications

Model		VSI-7611	VSI-8518	VSI-9526	VSI-1140
Capacity(t/h)	Cascade and Center Feeding	120-180	200-260	300-380	450-520
Capacity(t/h)	Center Feeding	60-90	100-130	150-190	225-260
Feeder Opening Size (mm)	Soft Material	≤35	≤40	≤45	≤50
Feeder Opening Size (mm)	Hard Material	≤30	≤35	≤40	≤45
Rotation Speed		1700-1890	1520-1690	1360-1510	1180-1310
Power of the Double Motors(kw)		110-150	180-220	264-320	400-440
Overall Dimension(mm)		3700x2150x2100	4140x2280x2425	4560x2447x2778	5000X2700X3300
Weight (t)		7.8	10.3	16	25.6
Power		380V:50Hz
Vibrating Sensor		Inspection Scope: 0.1-20mm/s,it can be adjusted continuously
Thin oil lubrication station	Power of Double Oil Pump	2×0.31kw
	Safety	supply of oil; Stop automatically without oil flow or oil pressure; Water cooled; Heating start the motor in winter
	Overall Dimension (mm)	820×520×1270
	Power of Oil-box HeaterDimension (kw)	2KW
