Vibrating Screen

【Feeding Size:】 3-150mm
【Processing Capacity:】 30-850t/h
【Range of application:】 quarry, building material, transportation, energy, chemistry, etc.
【Applied Material:】 Quartz stone, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase.

Product information

The Hot Models and Capacity of Sand Screening Machine

Sand screening machine is widely used to classify the minerals such as stone,sand, ore and othe kinds of minerals in mining, quarry, construction, building material industry.

It can be featured with 2 layers, 3 layers, 4 layers. It is used to sort and classify the materials accoding to the particle size by its circular vibration.

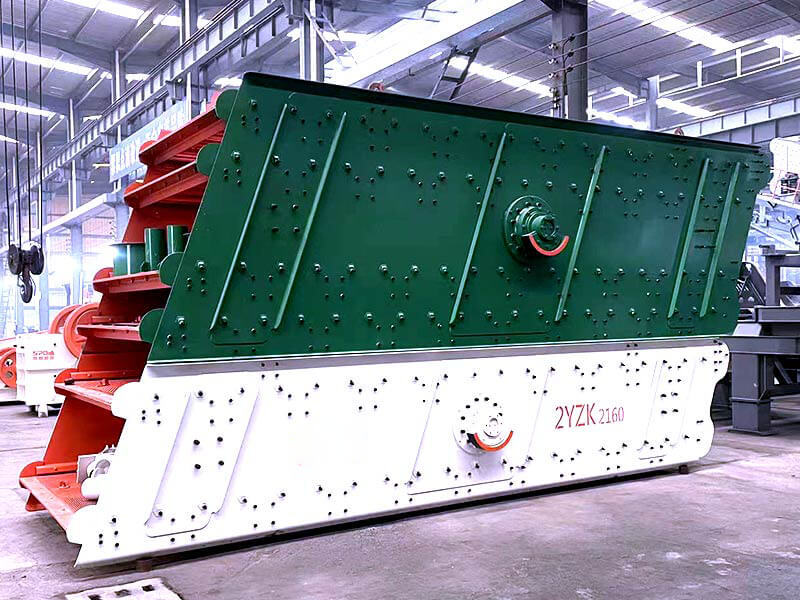

vibrating_screen

The Price List of Sand Screening Machine

Different types and sizes of sand screening machine have different prices. The price is generally from thousands dollars to ten thousands or hundreds of thousands dollars. Our technical people will send the latest quotation and price list to you after you tell us your requirement such as the capaicty. You can also send an email to [email protected] to consult us

Technical specifications

Model	Screen Surface Specification(mm)	Layers	Feeding Size(mm)	Sieve Pore Size(mm)	Capacity(t/h)	Power(kw)	Vibrating Frequency(r/min)	Stroke(mm)
2YZK1237	3700×1200	2	≤400	3-50	30-100	5.5	970	5-9
3YZK1237	3700×1200	3	≤400	3-50	30-100	7.5	970	5-9
2YZK1548	4800×1500	2	≤400	3-100	30-275	15	970	5-9
3YZK1548	4800×1500	3	≤400	3-100	30-275	15	970	5-9
2YZK1848	4800×1800	2	≤400	3-100	56-330	18.5	970	5-9
3YZK1848	4800×1800	3	≤400	3-100	56-330	18.5	970	5-9
4YZK1848	4800×1800	4	≤400	3-80	56-330	22	970	5-9
2YZK1860	6000×1800	2	≤400	3-100	65-586	18.5	970	5-9
3YZK1860	6000×1800	3	≤400	3-100	65-586	22	970	5-9
4YZK1860	6000×1800	4	≤400	3-100	65-586	30	980	5-9
2YZK2160	6000×2100	2	≤400	3-100	81-720	22	980	5-9
3YZK2160	6000×2100	3	≤400	3-100	81-720	30	970	5-9
4YZK2160	6000×2100	4	≤400	3-100	81-720	30	980	5-9
2YZK2460	6000×2400	2	≤400	3-150	100-810	22	970	5-9
3YZK2460	6000×2400	3	≤400	3-150	100-810	30	980	5-9
4YZK2460	6000×2400	4	≤400	3-150	150-850	37	980	5-9
2YZK2870	7000X2800	2	≤400	5-100	120-680	22x2	750	8
3YZK2870	7000X2800	3	≤400	5-100	180-720	22x2	750	8
2YZK3070	7000X3000	2	≤400	5-100	200-700	37	750	8
3YZK3070	7000X3000	3	≤400	5-100	230-800	45	750	8
