Sand Fine Crusher

Sand Fine Crusher

【Feeding Size:】 ≤190mm
【Processing Capacity:】 20-310t/h
【Range of application:】 The rotor rotate at a high speed, on which the blow bar is installed .as soon as the material get into the affecting area of the blow bar, they will be stroke by the blow bar and be thrown to the impact devices around the rotor. The high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size. The clearance between the impact rack and the rotor can be adjusted to change the size and shape of the end product.
【Applied Material:】 Limestone, Pebbles, Granite, Basalt, Iron ore, Quartz stone, etc

CONTACT US

Product information

Some Basic Information of Sand Fine Crusher

There are many kinds of sand making machines,from the first generation of hammer type sand making machine to the second generation of impact type sand making machine till the most advanced and practical third-generation sand making machine ,referred to as sand crusher,river pebble sand making machine.the product is a world-leading high-energy low-cost sand-making equipment ,its performance is better than the others,it is also the current most economical and practical sand crusher.

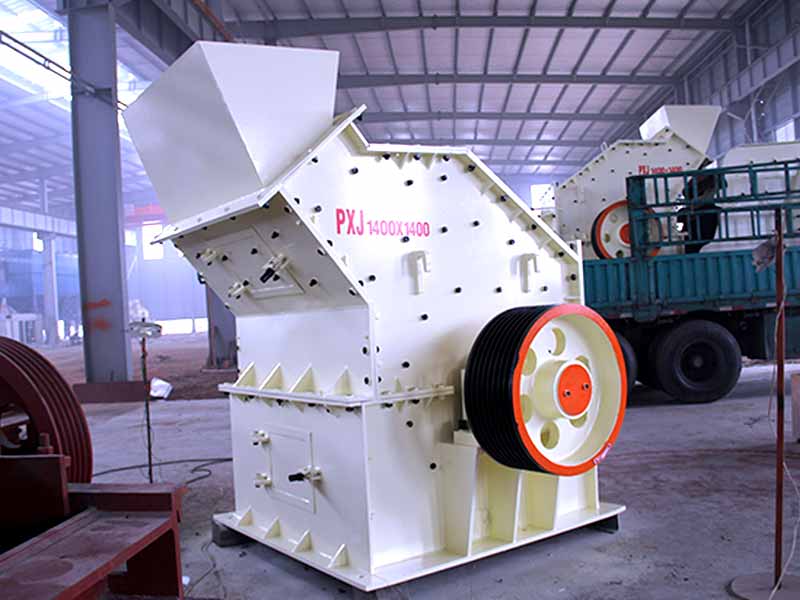

Sand Fine Crusher

The Main Features of Sand Fine Crusher

1.Reasonable design

2.Energy and cost saving

3.Low environment pollution

4.Simple structure and easy installation

Sand Fine Crusher

The Working Principle of Sand Fine Crusher

The rotor rotate at a high speed, on which the blow bar is installed .as soon as the material get into the affecting area of the blow bar, they will be stroke by the blow bar and be thrown to the impact devices around the rotor. The high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size. The clearance between the impact rack and the rotor can be adjusted to change the size and shape of the end product.

Technical specifications

ModelFeeder Size(mm)Feeder Opening Size(mm)Discharging Size(mm)Adjustable Size of Discharge Opening(mm)Capacity(t/h)Power(kw)
PXJ800×400≤120400×185≤55-2020-4537-45
PXJ800×600≤180500×250≤55-2035-5545-55
PXJ800×800≤180550×330≤55-2035-6545-55
PXJ1010×1010≤1801000×350≤55-2045-7555-75
PXJ1200×1000≤1801200×400≤55-2070-11090-110
PXJ1200×1200≤1801200×450≤55-2090-120110-132
PXJ1400×1400≤1901500×500≤55-20100-150160
PXJ1600×1600≤1901600×550≤55-20170-250250
PXJ1800×1800≤1901800×800≤55-20250-310315

LEAVE A REQUEST

PRODUCTION

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
