Impact Crusher

【Feeding Size:】 50-800mm
【Processing Capacity:】 15-800t/h
【Range of application:】 It is widely used for crushing ore in mining, highway, railway, construction, etc. Through the practice, impact crusher is an irreplaceable crushing equipment for high-grade sand and gravel.
【Applied Material:】 Limestone, Gypsum, Coal, Slag, Clay, Aggregate, Concrete, etc

Product information

The Hot-sale Models and Capacity

The crusher’s capacity is 15-800t/h, and its feeding size is 50-800mm. The output size can be adjusted freely according to your needs. (10-400mm)

PF-1007, PF-1010, PF-1210 are the hot-sale models in our company.

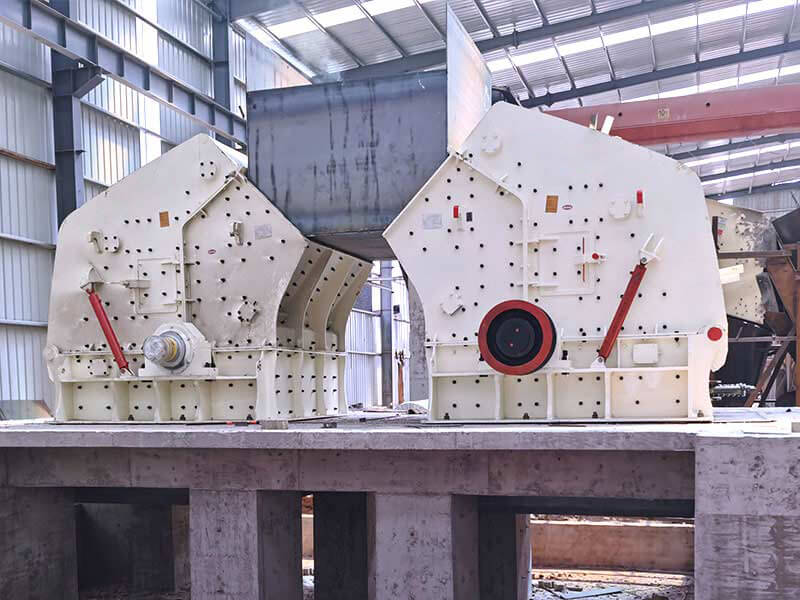

impact_crusher

Promise and Service

100% factory price and maxmium discount for you is our promise. You can find our customers in more than 90 countries such as South Africa, Kenya, Nigeria, Ethiopia, Zambia, Namibia, Somalia, Nepal, Pakistan, Philippines, Malaysia, Saudi Arabic.

If you are new in this industry, we will provide professional suggestions and solutions for you.

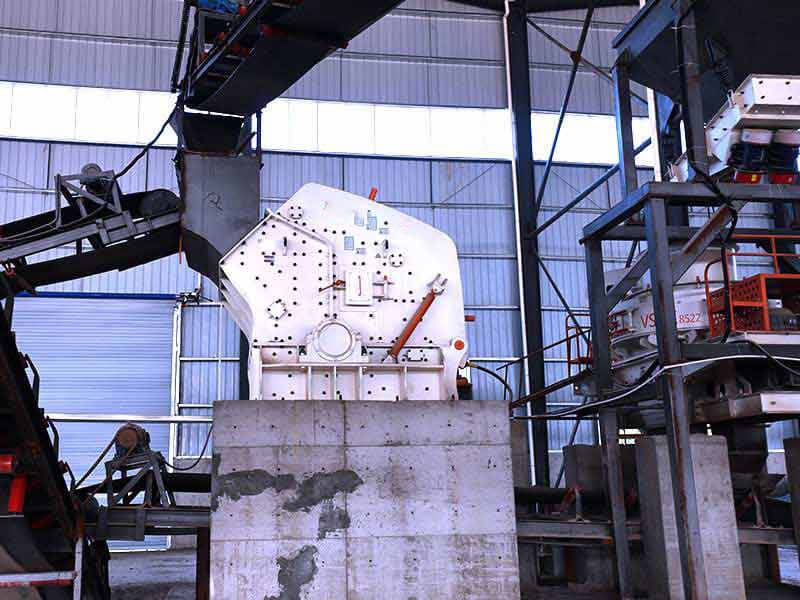

impact_crusher

Get a Quote

Dear, there are 3 ways for you to get the price list or quotation asap.

1. Leave your requirement to us on the message board.

2. Contact the online customer service.

3. Send an email to [email protected]

Technical specifications

Model	Specification	Feeding Opening Size(mm)	Feeder Size (mm)	Capacity (t/h)	Motor Power(kw)	Overall Dimension(mm)
PF-1007	Φ1000 × 700	400 x 730	≤250	15-60	45	2319 x 1654 x 2558
PF-1010	Φ1000 × 1050	400 x 1080	≤300	50-90	55	2319 x 2001 x 2558
PF-1210	Φ1250 × 1050	450 x 1060	≤300	80-150	90	2585 x 2053 x 2809
PFV-1214	Φ1250 × 1400	450 x 1440	≤300	100-200	132	2582 x 2403 x 2809
PFV-1315	Φ1320 × 1500	550 x 1530	≤350	130-280	160	2930 x 2761 x 3053
PFV-1320	Φ1320 × 2000	610 x 1900	≤500	180-400	220	3224 x 3175 x 2706
PFV-1520	Φ1500 x 2000	830 x 2040	≤700	300-550	(220-250)x2	3959 x 3564 x 3330
PFV-1820	Φ1800 x 2000	1260 x 2040	≤800	600-800	630-710	4400 x 3866 x 4009
